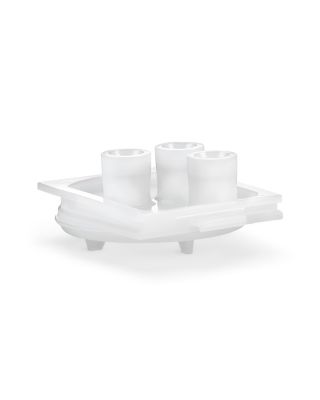

Eximor® SV1 Filter Flushing Shell

Download Image

This flushing shell is an empty housing used for line flushing where Eximor^® point-of-use solvent filters are installed, instead of using the filter.

The flow path provides a cleaner, more efficient transitional flow-through solution for POU photochemical filtration and dispense
The flow-through device is compatible with Eximor filters
Minimizes hold-up volume enabling quick flush up and reduces chemical usage
The 8G model provides the lowest 1 mL hold-up volume and advanced cleanliness in all technology nodes
Clean, HDPE resin enhances organic, metal, and particle shedding performance and minimizes contamination sources

Read More Read Less

Specify Your Part

Product Type

Part Number:

Interested in an Entegris Product?

To discuss your specific needs, contact your local Entegris representative.

Don't have an Entegris representative?

Request a Quote

Please fill out the form below and someone will contact you shortly.

* Required

First Name:

Please enter a first name

Last Name:

Please enter a last name

Country:

Please select a country/region

Email Address:

Please enter a valid email

Phone Number:

Please enter a valid phone number.

Company:

Please enter your company.

Company Address

You are required to accept the Captcha.

An error occurred while submitting your quote request. Please try again.

Cancel

Quote Requested

Thank you for requesting a quote. Someone from Entegris will contact you shortly.

Your quote number is {0}.

Top of page

CAD CAD Files

CAD drawings may be available for this product. Please use the Part Selector to select a part number to see if they are available.

Go to Part Selector

Applications Eximor® SV1 Filter Flushing Shell Applications

Point-of-tool photolithography applications
RRC solvents

Specifications

Product Specifications

Hold-up volume	1 mL
Compatibility	Visit our Chemical Compatibility web page
Resin	Clean
Internal surface area	1.4 cm² (0.22 in²)
Operating conditions	Maximum inlet pressure: 0.34 MPa (3.4 bar, 50 psi) @ 25°C (77°F) Maximum temperature: 40°C (104°F)
Note: The flushing shell is designed for short-term use (less than 1 month) in flushing chemical lines and systems.
Replace flushing shell with appropriate filter once line flushing is completed. Discard used flushing shells. Do not reuse. Do not use flushing shells in lieu of a filtration device or subject to long-term exposure to solvents in a pressurized environment. The warranty will be voided if the product is used in lieu of a filtration device or is subjected to long-term exposure to solvents in a pressurized environment. If expecting extended idle time in dispense line, we strongly urge customers to perform one of the following to avoid compromising flushing shell integrity: Depressurize line while flushing shell is installed. Dry the line and discontinue using the flushing shell.

Successfully Opted for software Updates

Reference Materials Product Documentation

Published Apr 14, 2022 Data Sheet Eximor® SV1 Filter Flushing Shell

143.6 kB

Published Apr 14, 2022 Data Sheet Eximor® SV1 Filter Flushing Shell - A4

143.6 kB

Part Numbers

Eximor® SV1 Filter Flushing Shell Part Numbers

Part Number	Product Type
EX00000K2	Eximor SV1 filter flushing shell
